| Place of Origin: | Dongguan China |
|---|---|
| ブランド名: | SANNI |
| Shaft Type: | Round/Flat/knurled | Resistance: | 300Ω-3MKΩ |
|---|---|---|---|
| Shaft Material: | Plastic | Mounting Type: | Through Hole/DIP Mount |
| Insulation Resistance: | 100MΩ Min | Gang: | Single |
| Dielectric Strength: | 500VAC | Material: | Plastic & Metal |
| ハイライト: | rotary potentiometer with plastic shaft,rotary potentiometer ±20% resistance tolerance,rotary potentiometer -25 to 85°C |
||

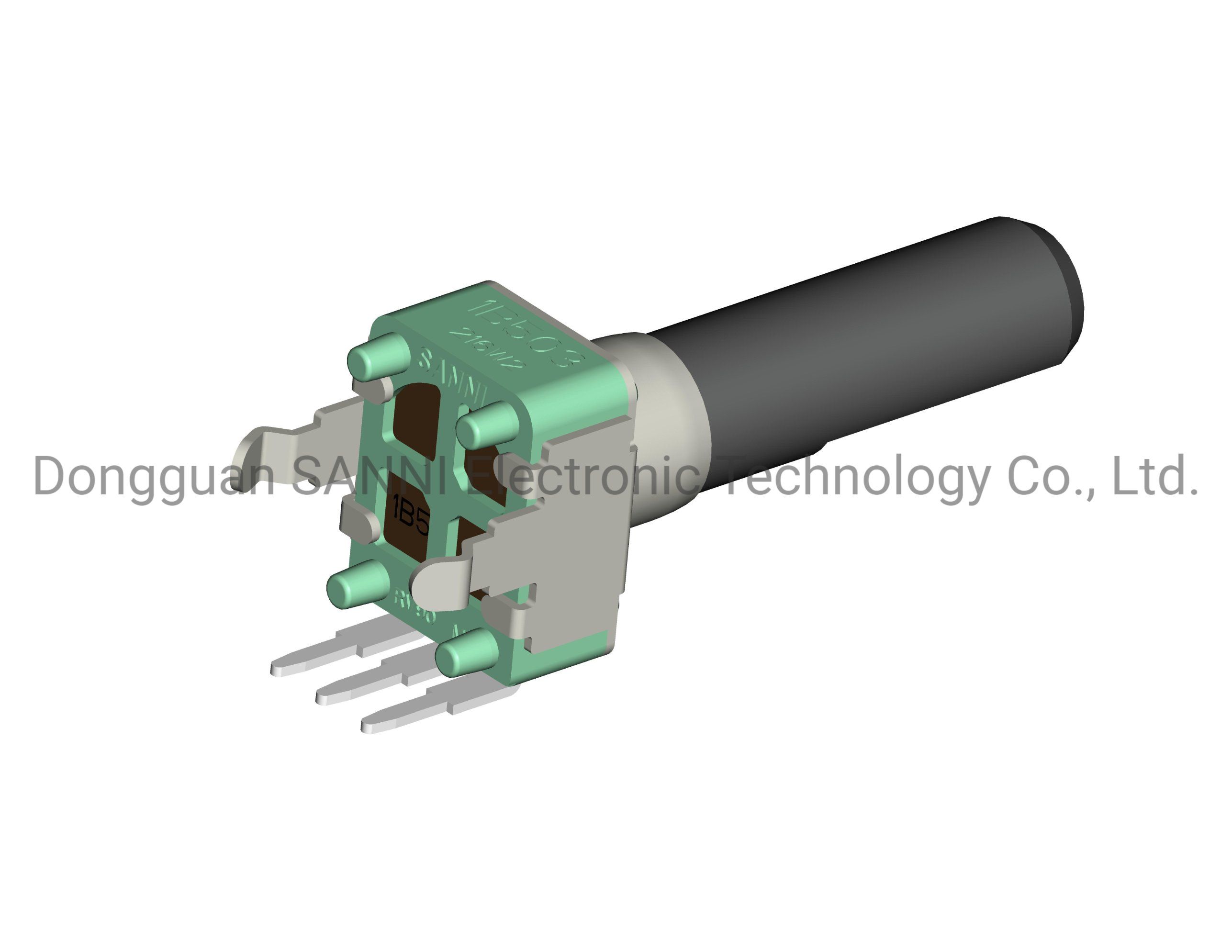

The Rotary Potentiometer is a highly versatile and reliable rotary analog adjustment device designed to provide precise control over electrical resistance in a wide range of electronic circuits. It is an essential component for various applications where manual adjustment of voltage or signal levels is required. Known for its durability and accuracy, this rotary electrical potentiometer is an ideal choice for both industrial and consumer electronics projects.
One of the key features of this rotary manual adjustment tool is its broad resistance range, which spans from 300Ω to an impressive 3MΩ. This extensive range allows users to fine-tune resistance settings to meet the specific needs of their devices, enhancing performance and functionality. Whether you are working on audio equipment, instrumentation, or control systems, this potentiometer offers the flexibility necessary to achieve optimal results.
Designed to operate efficiently within a temperature range of -25℃ to 85℃, this rotary analog adjustment device is built to withstand various environmental conditions. Its robust operating temperature range ensures stable performance and longevity, even in demanding applications where temperature fluctuations are common. This makes it suitable for use in automotive, industrial, and consumer electronics where reliability is paramount.
The shaft of this rotary electrical potentiometer is crafted from high-quality plastic, providing a lightweight yet durable interface for manual adjustments. Available in shaft lengths ranging from 6mm to 20mm, users can select the normal size or opt for customized lengths to suit specific design requirements. The plastic shaft material ensures smooth rotation and ease of use, making it comfortable for operators to make precise adjustments quickly and efficiently.
In addition to its mechanical properties, the terminal type of this rotary manual adjustment tool is designed as a PCB lug, facilitating straightforward and secure mounting onto printed circuit boards. This terminal configuration simplifies installation and enhances electrical connectivity, reducing the risk of loose connections and improving overall circuit reliability. The PCB lug terminals also support automated assembly processes, making this potentiometer a practical choice for large-scale manufacturing.
Overall, this rotary potentiometer combines a wide resistance range, durable construction, and user-friendly design to deliver a high-quality rotary analog adjustment device suitable for numerous electronic applications. Its plastic shaft and customizable lengths provide flexibility for various mechanical setups, while the PCB lug terminals ensure reliable electrical connections. Whether you are an engineer, technician, or hobbyist, this rotary electrical potentiometer offers a dependable solution for precise manual adjustment of resistance.
With its robust performance across a broad operating temperature range, the rotary potentiometer maintains consistent functionality even under challenging environmental conditions. This resilience, coupled with its easy-to-use design, makes it an indispensable rotary manual adjustment tool for tuning circuits, calibrating devices, and optimizing electronic systems. Embrace the versatility and precision of this rotary analog adjustment device to enhance your electronic projects and achieve superior control over your electrical parameters.
| Product Name | Rotary Potentiometer |
| Operating Temperature | -25℃ to 85℃ |
| Resistance | 300Ω to 3MΩ |
| Shaft Diameter | 6mm or Customized |
| Dielectric Strength | 500VAC |
| Rotational Life | 10,000 Cycles |
| Mounting Type | Through Hole / DIP Mount |
| Dimension | 9mm |
| Shaft Length | 6mm to 20mm Normal or Customized |
| Insulation Resistance | 100MΩ Min |
The SANNI Rotary Potentiometer, originating from Dongguan, China, is a versatile and reliable component widely used in various applications due to its durable construction from high-quality plastic and metal materials. As a single gang rotary variable resistor, it offers precise control over electrical resistance, making it an essential device in many electronic circuits. With a power rating of 0.05W and a dielectric strength of 500VAC, this rotary potentiometer ensures safety and stability in operation, even under demanding conditions.
The rotary potentiometer serves as an excellent rotary electrical position sensor, providing accurate feedback on the position of a rotating element. This makes it ideal for use in instrumentation, industrial controls, and consumer electronics where precise position sensing is critical. For example, in audio equipment, the SANNI rotary variable resistor is commonly used as a volume control knob, allowing smooth and reliable adjustment of sound levels. Its robust construction ensures long-lasting performance even with frequent use.
In automotive applications, the rotary electrical position sensor function of the SANNI rotary potentiometer is leveraged to monitor and control throttle position, steering angle, and other movable components, contributing to enhanced vehicle performance and safety. Additionally, it is frequently employed in robotics and automation systems where accurate position feedback is essential for precise movement control. The single gang design simplifies integration into compact control panels and devices.
The SANNI rotary potentiometer is also highly valued in educational and prototyping environments, where it enables engineers and students to experiment with variable resistance and position sensing in a convenient and cost-effective manner. Its compatibility with various electronic circuits and systems makes it a fundamental component in developing and testing new technologies.
Overall, the SANNI Rotary Potentiometer is a dependable and flexible solution for numerous product application occasions and scenarios. Whether used as a rotary variable resistor or as a rotary electrical position sensor, it delivers consistent performance, safety, and precision. Its origin from Dongguan, China, combined with quality materials and specifications, makes it a preferred choice for manufacturers and designers seeking reliable rotary potentiometers for their projects.
At SANNI, based in Dongguan China, we offer customized Rotary Potentiometer solutions to meet your specific requirements. Our Rotary Manual Adjustment Tool is designed with a power rating of 0.05W, ensuring reliable performance in various applications. Featuring a durable plastic shaft material and a PCB lug terminal type, our Rotary Multi-Turn Potentiometer provides precise and smooth adjustments. With a dielectric strength of 500VAC, SANNI's Rotary Multi-Turn Potentiometer guarantees safety and durability, making it an ideal choice for your electronic projects.
Our Rotary Potentiometer product is designed to provide precise and reliable variable resistance control for a wide range of applications. For technical support, please ensure you have the model number and specifications of your potentiometer ready. Our support team can assist with installation guidance, troubleshooting, and performance optimization to help you achieve the best results.
We offer comprehensive services including calibration, repair, and replacement to maintain the accuracy and longevity of your rotary potentiometer. Additionally, detailed datasheets and user manuals are available to help you understand the technical parameters and wiring instructions.
For any technical inquiries, compatibility questions, or customization requests, our experts are available to provide detailed advice and solutions tailored to your specific needs. Please refer to the product documentation for maintenance tips and safety information to ensure optimal operation.
We are committed to providing excellent customer service and technical support to enhance your experience with our Rotary Potentiometer products.
Each Rotary Potentiometer is carefully packaged to ensure it arrives in perfect condition. The product is placed in an anti-static bag to protect it from moisture and static electricity, then securely enclosed within a durable cardboard box with adequate cushioning materials to prevent damage during transit.
For shipping, we use reliable carriers that provide tracking services and timely delivery. Orders are processed promptly and shipped within 1-2 business days. International shipping options are available, with estimated delivery times depending on the destination.
We strive to provide safe and efficient packaging and shipping to guarantee customer satisfaction with every purchase of our Rotary Potentiometer.
Q1: What is the brand name of this rotary potentiometer?
A1: The brand name of this rotary potentiometer is SANNI.
Q2: Where is the SANNI rotary potentiometer manufactured?
A2: The SANNI rotary potentiometer is manufactured in Dongguan, China.
Q3: What type of applications is the SANNI rotary potentiometer suitable for?
A3: The SANNI rotary potentiometer is suitable for various electronic devices requiring adjustable resistance, such as volume controls, tuning circuits, and other analog signal adjustments.
Q4: What are the common resistance values available for the SANNI rotary potentiometer?
A4: The SANNI rotary potentiometer is available in a range of resistance values typically from 1kΩ to 1MΩ, depending on the specific model.
Q5: How do I connect the SANNI rotary potentiometer in a circuit?
A5: The SANNI rotary potentiometer typically has three terminals: two for the ends of the resistive track and one for the wiper. Connect the ends to the voltage source and ground, and the wiper provides the adjustable output voltage.
